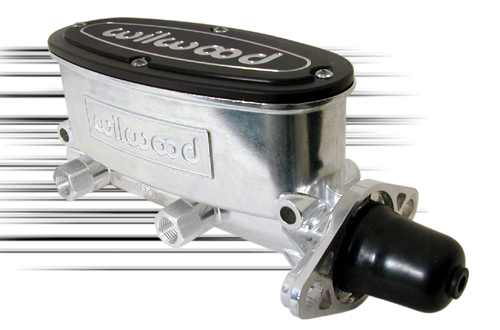

WILWOOD MASTER CYLINDER with adjustable rod
|
Back to Top |
| Item Description |
|
Price |
Order |
|
The mounting flange is slotted to accommodate installation on bolt centers between 3.22" and 3.40". That makes it a simple bolt-on to many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang master cylinder bolt patterns.
The body also features two through-hole mounts on 6.40" centers for side mounting to frame members or other secure elements of the chassis.
|
|
|
|
|
Wilwood master Cylinders for changing from drum to disc |
Note:comes with adjustable rod
|
$239.95
|
|
|
|
Back to Top |
| Item Description |
|
Price |
Order |
|

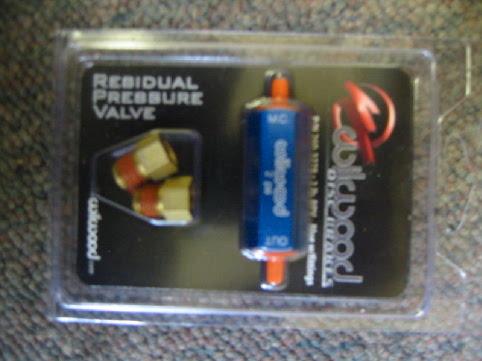

A residual pressure valve is used when a master cylinder is mounted equal to or below the horizontal plane of the calipers or drum brake wheel cylinders. |
Install the valve as close as possible to the master cylinder and position the end marked M.C. toward the master cylinder and the end marked out toward the brakes |
For disc or drum brakes with dual master cylinder
|
|
|
1/8-27 NPT INLET AND OUT LET |
2-Lb Valve
|
$19.95
|
|
ADJUSTABLE PROPORTIONING VALVE
|
Back to Top |
| Item Description |
|
Price |
Order |
|
ADJUSTABLE PROPORTIONING VALVE |
MOUNTING HOLE DIAMETER .250 HOLE SPACING 1.00 INCH |
ADJUSTABLE PROPORTIONING VALVE
$59.95
|
|
|
MAX PRESSURE REDUCTION 57% INLET/OUTLET PORTS 1/8-27 NPT |
|
$59.95
|
|
MASTER CYLINDER OEM AIMCO 1979-1993
|
Back to Top |
| Item Description |
|
Price |
Order |
|
MASTER CYLINDER DRUM REAR DISC FRONT recommend by factory five (with 7/8 inch bore) (note; master cylinder comes with line fittings) |
|
|
|
|
FORD MUSTANG 1979-1987 MASTER CYLINDER MADE BY AIMCO 7/8 inch bore this is recommend by factory five (steel master cylinder) |
|
$64.95
|
|
MASTER CYLINDER OEM AIMCO 1979-1993
|
Back to Top |
| Item Description |
|
Price |
Order |
|
MASTER CYLINDER DRUM REAR DISC FRONT (with 15/16 inch bore)(note; master cylinder has gromets on inlet line holes) |
|
|
|
|
|
FORD MUSTANG 1979-1987 MASTER CYLINDER MADE BY AIMCO (steel master cylinder) |
|
$64.95
|
|
MASTER CYLINDER OEM AIMCO 1993
|
Back to Top |
| Item Description |
|
Price |
Order |
|
MASTER CYLINDER DISC REAR DISC FRONT (with 1 inch bore size) (note; master cylinder inlet line holes have no gromets) |
|
|
|
|
FORD MUSTANG (Cobra) 1993 MASTER CYLINDER MADE BY AIMCO (note; aluminum master cylinder) |
|
$119.95
|
|
MASTER CYLINDER OEM AIMCO 1994-1995
|
Back to Top |
| Item Description |
|
Price |
Order |
|
MASTER CYLINDER DISC REAR DISC FRONT (with 15/16 inch bore size) (note; master cylinder inlet line holes have no gromets) |
|
|
|
|
|
FORD MUSTANG (Cobra) 1994-1995 MASTER CYLINDER MADE BY AIMCO (note; aluminum master cylinder) |
|
$119.95
|
|
MASTER CYLINDER OEM AIMCO 1999-2004 HYDRO BOOST
|
Back to Top |
| Item Description |
|
Price |
Order |
|
MASTER CYLINDER |
|
|
|
|
|
FORD MUSTANG WITH HYDRO BOOST (Cobra) 1999-2004 MASTER CYLINDER MADE BY AIMCO (note; aluminum master cylinder) |
|
$119.95
|
|
ADJUSTABLE ROD FOR master CYLINDER
|
Back to Top |
| Item Description |
|
Price |
Order |
|
ADJUSTABLE ROD FOR master CYLINDER |
|
|
|
|
ADJUSTABLE ROD FOR master CYLINDER |
|
$49.95
|
|
|
|
|
|
